Polycoil Hose
| Technithane Poly Hose Specs |
Technithane Polyurethane Spiral Hose
All Technithane product lines have been consolidated into a single offering, including TechniblueTM and Auto Spiral.
TechnithaneTM Spirals are manufactured from tough polyurethane resin, providing a flexible & lightweight alternative to Nylon Spirals. TechnithaneTM Spirals’ 98A construction provides excellent memory and retraction strength.
All Technithane product lines have been consolidated into a single offering, including TechniblueTM and Auto Spiral.
TechnithaneTM Spirals are manufactured from tough polyurethane resin, providing a flexible & lightweight alternative to Nylon Spirals. TechnithaneTM Spirals’ 98A construction provides excellent memory and retraction strength.
- Lightweight and Abrasion-Resistant
- Resists Kinking
- Reusable Nickel-Plated Fittings with Bend Restrictors
- Excellent Coil Memory
- Thread Sealant Supplied on all Fittings
- Widest Variety of Colors, Sizes, and Threads in ATP’s Offering
- Available with Threads or Pneumatic QD Fittings
- Custom Assemblies Available – Contact ATP
| Strong Spiral Specs |
Strong Spiral - Reduced Diameter Spiral Hose
StrongTM Spirals are manufactured with a proprietary process that allows areduced spiral diameter and increased retraction strength. Additionally, the reduced spiral diameter prevents any possible tangles with other spirals. StrongTM Spirals are ideal for assembly-line applications where multiple spirals are in one work area.
StrongTM Spirals are manufactured with a proprietary process that allows areduced spiral diameter and increased retraction strength. Additionally, the reduced spiral diameter prevents any possible tangles with other spirals. StrongTM Spirals are ideal for assembly-line applications where multiple spirals are in one work area.
- Lightweight and Abrasion-Resistant
- Excellent Coil Memory and Retraction Strength
- Virtually Kink-Proof
- Reusable Nickel-Plated Fittings with Bend-Restrictors
- Thread Sealant Supplied on all Fittings
- Low Moisture Absorption Rates
| Strong Plus Specs |
Strong Plus Spiral Hose
Strong-PlusTM Spirals are manufactured with a proprietary process that allows a reduced spiral diameter and increased retraction strength. Strong-PlusTM Spirals feature a soft, 60A 5ft Long Polyurethane Tail, the Strong-PlusTM Spiral is ideal for fixed workspaces or assembly-line applications. The increased comfort and convenience offered by the tail combines the best traits of a straight hose and a spiral.
Strong-PlusTM Spirals are manufactured with a proprietary process that allows a reduced spiral diameter and increased retraction strength. Strong-PlusTM Spirals feature a soft, 60A 5ft Long Polyurethane Tail, the Strong-PlusTM Spiral is ideal for fixed workspaces or assembly-line applications. The increased comfort and convenience offered by the tail combines the best traits of a straight hose and a spiral.
- Ideal for Painting and Finishing Applications
- 60A PU Ultra-Flexible Tail with a 98A Spiral
- Soft Tail Prevents Unintended Spiral Contact with Delicate Surfaces
- Excellent Coil Memory and Retraction Strength
- Virtually Kink-Proof
- Reusable Nickel-Plated Fittings with Bend-Restrictors
- Thread Sealant Supplied on All Fittings
- Excellent Option for Confined Work Areas
| Armorthane Spiral Hose Specs |
Armorthane Spiral Hose
ArmorthaneTM Spiral hoses feature a sturdy weave of braided reinforcement between the inner and outer layers, increasing durability and working pressure. The reduced diameter of the spiral enables higher retraction strength, preventing tangles often associated with other hoses.
ArmorthaneTM Spiral hoses feature a sturdy weave of braided reinforcement between the inner and outer layers, increasing durability and working pressure. The reduced diameter of the spiral enables higher retraction strength, preventing tangles often associated with other hoses.
- UV-Stabilized
- Excellent Abrasion-Resistance
- Increased Working Pressure
- Reusable Nickel-Plated Fittings with Bend Restrictors
- Thread Sealant Supplied on all Fittings
- Available with Threads of Pneumatic QD Fittings
- Custom Assemblies Available – Contact ATP
| Single Tube NSF |
Single Tube NSF 51® Polyurethane Spirals
ATP’s Polyurethane TechniSpiralTM is constructed of NSF 51® Certified SurethaneTM Tubing. Constructed of ether-based resin, Polyurethane TechniSpirals resist hydrolysis brought on by humidity and contact with moisture.
ATP’s Polyurethane TechniSpiralTM is constructed of NSF 51® Certified SurethaneTM Tubing. Constructed of ether-based resin, Polyurethane TechniSpirals resist hydrolysis brought on by humidity and contact with moisture.
- Resists Kinking
- Excellent Coil Memory
- Wide Variety of Sizes and Colors
| Single Tube Nylon Spiral Specs |
Single Tube Nylon Spirals
ATP’s Nylon TechniSpiralTM is constructed of Nylon 12 tubing. Like Nylochem® Tubing, these spirals are well suited for applications that require increased working pressures and temperatures.
ATP’s Nylon TechniSpiralTM is constructed of Nylon 12 tubing. Like Nylochem® Tubing, these spirals are well suited for applications that require increased working pressures and temperatures.
- Thinner Wall Enables Higher Flow Rates
- Superior Moisture Absorbsion Rates
- Broad Chemical Resistance
- UV-Stabilized, Ideal for Outdoor Use
Australian made polyurethane hose with fittings, makes an ideal 7.5 metre wash down hose kit.
Code: WD012F
Code: WD012F

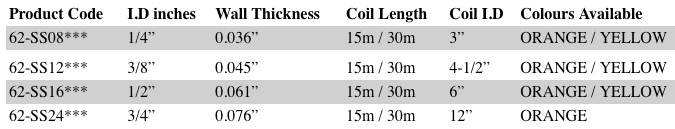

Nylon Self Store Hose
The mirror smooth interior surface of Esdans Self Store hose gives optimum air flow at the full nominal diameter and hence air tools operate more efficiently. Lubrication oil added by means of ‘airline oilers’ reaches the working parts of air tools to keep the working parts running smoothly. Self store hose is made form nylon and does not contaminate the oil or give off any sticky residue to damge air tool as found with many rubber hoses.
The mirror smooth interior surface of Esdans Self Store hose gives optimum air flow at the full nominal diameter and hence air tools operate more efficiently. Lubrication oil added by means of ‘airline oilers’ reaches the working parts of air tools to keep the working parts running smoothly. Self store hose is made form nylon and does not contaminate the oil or give off any sticky residue to damge air tool as found with many rubber hoses.
- Burst Minimum 700 PSI
- Working Pressure 175 PSI
| Suzi Coil Air Brake Tube |

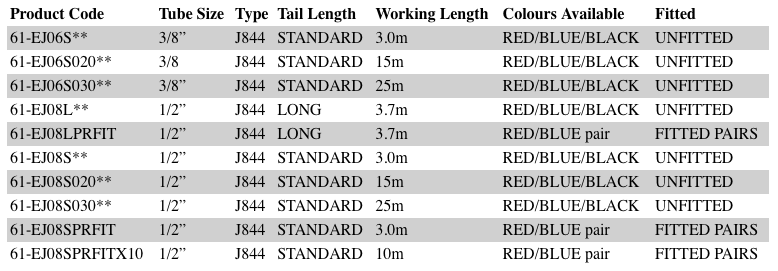

Suzi Coil Air Brake Tube
Esdan Plastics Suzi coil Air Brake System Tubing is manufactured from Nylon. These products are designed specifically for the transfer of air between the prime mover and semi-trailer, although other applications such as truck, trailer combinations are often used. Esdan Suzi coils are all SAE J844, helically coiled to give the desired working length, and retractable to a very short length to store out of the way when not in use.
Long tail Suzi coils have a 1 metre tail for applications where the air connections are elevated 1m above the chassis.
* custom sizes, lengths, colours and styles available on request
Esdan Plastics Suzi coil Air Brake System Tubing is manufactured from Nylon. These products are designed specifically for the transfer of air between the prime mover and semi-trailer, although other applications such as truck, trailer combinations are often used. Esdan Suzi coils are all SAE J844, helically coiled to give the desired working length, and retractable to a very short length to store out of the way when not in use.
Long tail Suzi coils have a 1 metre tail for applications where the air connections are elevated 1m above the chassis.
* custom sizes, lengths, colours and styles available on request
| Polycoil by Summit - Print Info |

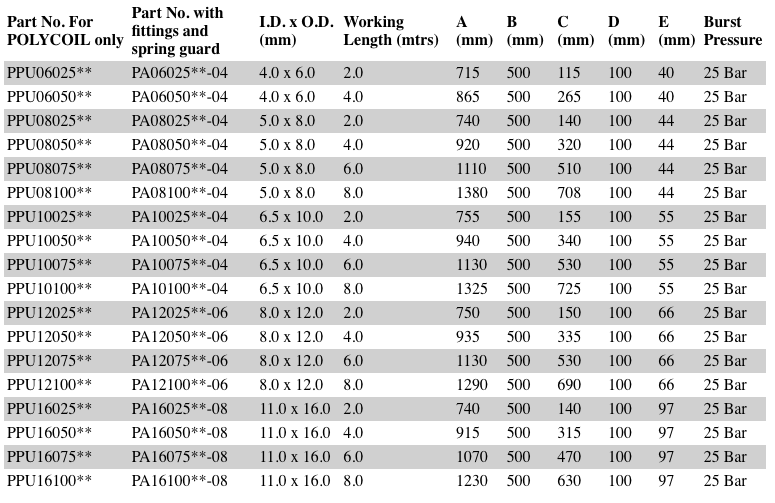

Polycoil by Summit (Polyurethane)
DURABILITY: When the going gets tough, POLYCOIL is the easy choice.
ABRASION RESISTANCE: On concrete floors, even outside on gravel driveways, POLYCOIL hose can outlast normal hose by up to seven to one.
EXCELLENT MEMORY: Stretch it to its limit, run over it with a car, POLYCOIL hose bounces right back.
GOOD RESISTANCE TO FUELS: Fuels and oil such as hydraulic oil, olive oil, transformer oil, petroleum and kerosene don't worry it.
WIDER OPERATING TEMPERATURES: From minus 30oC to plus 90oC. POLYCOIL hoses can be used in cool rooms, the snow fields, on hot concrete driveways and other places where wide temperature variations are encountered.
SUPERIOR RESILIENCE: Working length is 80%of the actual length.
FLEXIBILITY: POLYCOIL hose resists vibration fatigue and premature aging.
CONVENIENCE: Available assembled with threaded ends and spring guards for instant fitting to your air tools. Can also be supplied without ends.
MANY OTHER BENEFITS: A small coil diameter and lighter weight reduces operator fatigue. Straight tails on the ends makes it easier to use with air tools. Straight tails allows joining of two POLYCOILS.
DURABILITY: When the going gets tough, POLYCOIL is the easy choice.
ABRASION RESISTANCE: On concrete floors, even outside on gravel driveways, POLYCOIL hose can outlast normal hose by up to seven to one.
EXCELLENT MEMORY: Stretch it to its limit, run over it with a car, POLYCOIL hose bounces right back.
GOOD RESISTANCE TO FUELS: Fuels and oil such as hydraulic oil, olive oil, transformer oil, petroleum and kerosene don't worry it.
WIDER OPERATING TEMPERATURES: From minus 30oC to plus 90oC. POLYCOIL hoses can be used in cool rooms, the snow fields, on hot concrete driveways and other places where wide temperature variations are encountered.
SUPERIOR RESILIENCE: Working length is 80%of the actual length.
FLEXIBILITY: POLYCOIL hose resists vibration fatigue and premature aging.
CONVENIENCE: Available assembled with threaded ends and spring guards for instant fitting to your air tools. Can also be supplied without ends.
MANY OTHER BENEFITS: A small coil diameter and lighter weight reduces operator fatigue. Straight tails on the ends makes it easier to use with air tools. Straight tails allows joining of two POLYCOILS.
