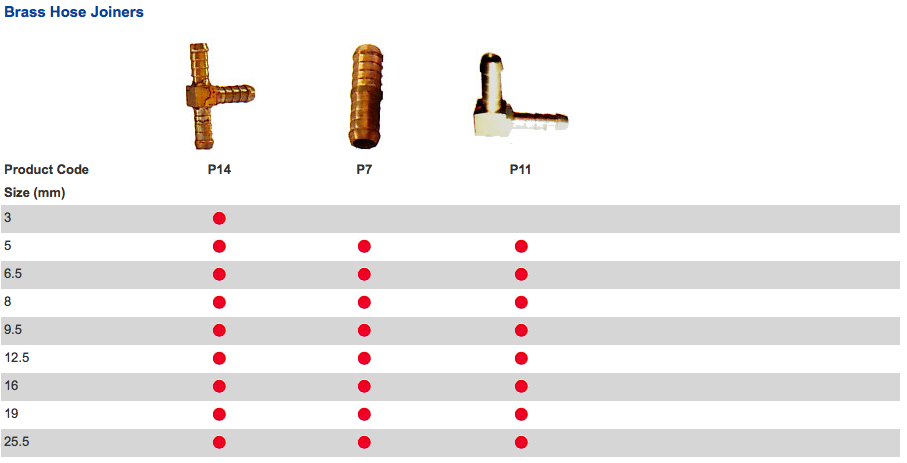

​Brass Hosetail Fittings (BSP) and Horsetail Joiners
Hosetail Fittings PDF
File Size: 280 kb
File Type: pdf
Download File

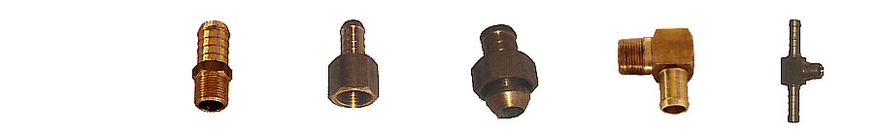

  MALE TAIL FEMALE TAIL NUT & TAIL MALE ELBOW MALE TEE
SIZE (mm x BSP) Hosetail x BSP
 Hosetail x BSP Hosetail x BSP Hosetail x BSP Hosetail x BSP
Product Code P3 P10 P5 P6 P12
3 x 1/8 ✓
5 x 1/8 ✓ ✓ ✓ ✓ ✓
5 x 1/4 ✓ ✓ ✓ ✓
6.5 x 1/8 ✓ ✓   ✓ ✓
6.5 x 1/4 ✓✓✓✓✓
6.5 x 3/8 ✓ ✓ ✓
6.5 x 1/2 ✓ ✓ ✓
8 x 1/8 ✓ ✓   ✓ ✓
8 x 1/4 ✓ ✓ ✓ ✓ ✓
8 x 3/8 ✓ ✓ ✓
8 x 1/2 ✓ ✓ ✓
9.5 x 1/8 ✓ ✓   ✓ ✓
9.5 x 1/4 ✓ ✓ ✓ ✓ ✓
9.5 x 3/8 ✓ ✓ ✓ ✓ ✓
9.5 x 1/2 ✓ ✓ ✓   ✓
12.5 x 1/8 ✓
12.5 x 1/4 ✓ ✓   ✓
12.5 x 3/8 ✓ ✓ ✓ ✓ ✓
12.5 x 1/2 ✓ ✓ ✓ ✓ ✓
12.5 x 3/4 ✓   ✓ ✓
16 x 1/4 ✓     ✓
16 x 3/8 ✓ ✓ ✓ ✓ ✓
16 x 1/2 ✓ ✓   ✓
16 x 3/4 ✓
19 x 3/8 ✓
19 x 1/2 ✓ ✓   ✓
19 x 3/4 ✓ ✓ ✓ ✓ ✓
19 x 1 ✓
25.5 x 1/2 ✓
25.5 x 3/4 ✓
25.5 x 1 ✓ ✓ ✓ ✓ ✓
32 x 32 ✓ ✓
38 x 38 ✓ ✓
50 x 50 ✓ ✓
65 x 65 ✓ ✓
75 x 75 ✓ ✓
100 x 100 ✓ ✓

brass_joiners.pdf
File Size: 218 kb
File Type: pdf
Download File
brass_cast_male_hex.pdf
File Size: 486 kb
File Type: pdf
Download File

Brass Cast Male End - With Hex

13 x 13 BRCME013 Brass Cast Male End 13mm BSP x 13mm Hose
13 x 20 BRCME013020 Brass Cast Male End 13mm BSP x 20mm Hose
20 x 20 BRCME020 Brass Cast Male End 20mm BSP x 20mm Hose
20 x 13 BRCME020013 Brass Cast Male End 20mm BSP x 13mm Hose
25 x 25 BRCME025 Brass Cast Male End 25mm BSP x 25mm Hose
25 x 13 BRCME025013 Brass Cast Male End 25mm BSP x 13mm Hose
25 x 20 BRCME025020 Brass Cast Male End 25mm BSP x 20mm Hose
32 x 32 BRCME032 Brass Cast Male End 32mm BSP x 32mm Hose
32 x 25 BRCME032025 Brass Cast Male End 32mm BSP x 25mm Hose
38 x 38 BRCME038 Brass Cast Male End 38mm BSP x 38mm Hose
38 x 32 BRCME038032 Brass Cast Male End 38mm BSP x 32mm Hose
50 x 50 BRCME050 Brass Cast Male End 50mm BSP x 50mm Hose
50 x 38 BRCME050038 Brass Cast Male End 50mm BSP x 38mm Hose
65 x 65 BRCME065 Brass Cast Male End 65mm BSP x 65mm Hose
75 x 75 BRCME075 Brass Cast Male End 75mm BSP x 75mm Hose
100 x 100 BRCME100 Brass Cast Male End 100mm BSP x 100mm Hose

Brass Cast Nut & Tail
File Size: 517 kb
File Type: pdf
Download File

Brass Cast Nut and Tail

13 x 13 BRCNT013 Brass Cast Nut & Tail 13mm BSP x 13mm Hose
20 x 20 BRCNT020 Brass Cast Nut & Tail 20mm BSP x 20mm Hose
20 x 13 BRCNT020013 Brass Cast Nut & Tail 20mm BSP x 13mm Hose
25 x 25 BRCNT025 Brass Cast Nut & Tail 25mm BSP x 25mm Hose
25 x 13 BRCNT025013 Brass Cast Nut & Tail 25mm BSP x 13mm Hose
25 x 20 BRCNT025020 Brass Cast Nut & Tail 25mm BSP x 20mm Hose
32 x 32 BRCNT032 Brass Cast Nut & Tail 32mm BSP x 32mm Hose
32 x 25 BRCNT032025 Brass Cast Nut & Tail 32mm BSP x 25mm Hose
38 x 38 BRCNT038 Brass Cast Nut & Tail 38mm BSP x 38mm Hose
50 x 50 BRCNT050 Brass Cast Nut & Tail 50mm BSP x 50mm Hose
50 x 25 BRCNT050025 Brass Cast Nut & Tail 50mm BSP x 25mm Hose
50 x 38 BRCNT050038 Brass Cast Nut & Tail 50mm BSP x 38mm Hose
65 x 65 BRCNT065 Brass Cast Nut & Tail 65mm BSP x 65mm Hose
75 x 75 BRCNT075 Brass Cast Nut & Tail 75mm BSP x 75mm Hose
100 x 100 BRCNT100 Brass Cast Nut & Tail 100mm BSP x 100mm Hose
Insertion Washers
File Size: 517 kb
File Type: pdf
Download File

Replacement Insertion Washers

13 BRCNTW013 Replacement Washer - Suit 13mm
20 BRCNTW020 Replacement Washer - Suit 20mm
25 BRCNTW025 Replacement Washer - Suit 25mm
32 BRCNTW032 Replacement Washer - Suit 32mm
38 BRCNTW038 Replacement Washer - Suit 38mm
50 BRCNTW050 Replacement Washer - Suit 50mm
brass_fittings3.pdf
File Size: 517 kb
File Type: pdf
Download File

Male Hose Stem

13 GJM013 Male Hose Stem 1/2"
20 GJM020 Male Hose Stem 3/4"
25 GJM025 Male Hose Stem 1"
25 GJM025B Male Hose Stem 1" BSPT
32 GJM032 Male Hose Stem 1 1/4"
32 GJM032B Male Hose Stem 1 1/4" BSPT
38 GJM038 Male Hose Stem 1 1/2"
38 GJM038B Male Hose Stem 1 1/2" BSPT
50 GJM050 Male Hose Stem 2"
50 GJM050B Male Hose Stem 2" BSPT
65 GJM065 Male Hose Stem 2 1/2"
65 GJM065B Male Hose Stem 2 1/2" BSPT
75 GJM075 Male Hose Stem 3"
75 GJM075B Male Hose Stem 3" BSPT
100 GJM100 Male Hose Stem 4"
